| MOQ: | 1Set |
| السعر: | قابل للتفاوض |
| standard packaging: | Woodencase |
| Delivery period: | 45 يوم عمل |
| payment method: | L/C ، T/T ، Western Union |
| Supply Capacity: | 100 ملمس/شهر |

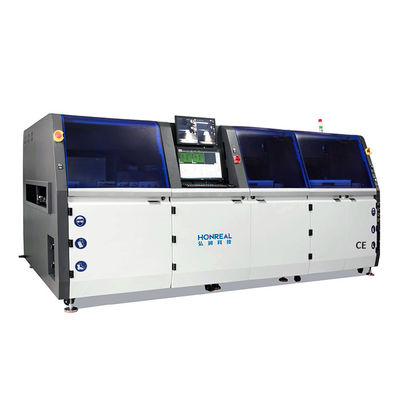

Advanced selective soldering solution with high efficiency and quality performance.
| Parameter | Value |
|---|---|
| Equipment type | HRX-31D |
| Machine size | L4193 x W1645 x H1630mm |
| Total machine power | 35kw |
| Machine operating power | 9-12kw |
| Power source | Three-phase five-wire system 380V |
| Net weight | 2500KG |
| Air source pressure requirements | 0.4~0.6Mpa |
| Nitrogen source pressure requirements | 0.4~0.6Mpa |
| Nitrogen source flow requirements | ≥4 cubic/hour |
| Nitrogen source purity requirements | ≥99.999% |
| Communication interface | SMEMA |
| Feature | Specification |
|---|---|
| Maximum PCB size | L508 x W460mm |
| PCB board edge | More than 5mm |
| Transport direction | Horizontal from left to right |
| Headroom on PCB board | 120mm |
| PCB board bottom clearance | 60mm |
| Transport bearing capacity | ≥10Kg |
| Transport height | 900±30mm |
Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:
Shenzhen Honreal Technology Co., Ltd. is a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. We serve top global electronic companies with our experienced technical team and innovation capabilities.
